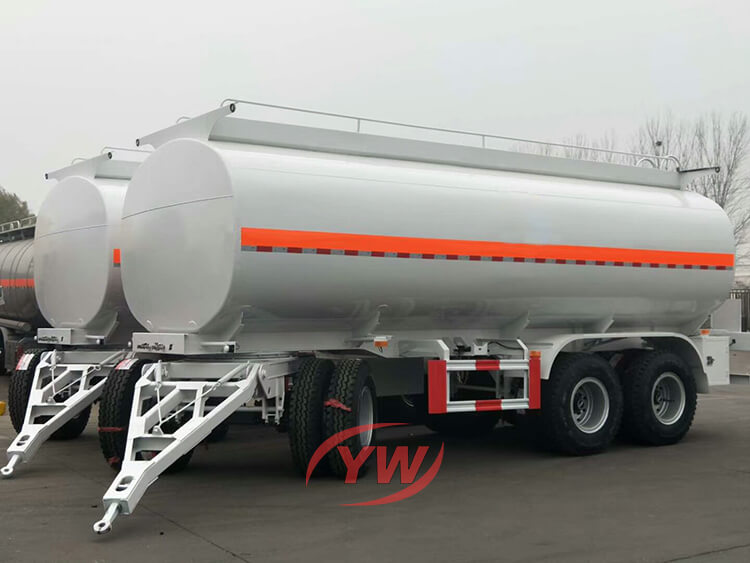

40tons/3 axles small fuel tank trailer

40tons/3 axles small fuel tank trailer

fuel tank trailer

  • Product No.: YW-FUEL-01

Fuel tank trailer

Shape Optional(Round or Square)
Dimension 11980mm×2500mm×3800mm (adjustable as your requirements)
Tare weight 9000kg
Total Volume 40L
Tanker Body Material 5mm or 6mm Q235 carbon steel
End Plate 5mm or 6mm Q235 carbon steel
Manhole Cover Carbon steel or Aluminum alloy API manhole cover. Diameter: 500mm
Compartments 1-7 Optional
Bottom Valve Aluminum API Pneumatic Bottom Valve
Discharging Valve Diameter is 3 or 4 inches
Discharging Pipe 4” rubber hose, 2 pcs, 6m/each
CaT Walk Standard or optional
Main Beam Welding design or Special design, connected by bolts and nuts.
Material: Q345 carbon steel
Axle 2 or 3 axles, BPW/FUWA/HUAJING brand
Landing gear JOST(D200T) or China brand 28T(two speed)
King Pin JOST 2.00 or 3.5 inch bolt-in king pin
Suspension Mechanical suspension(Germany or America type) or Air
Leaf Spring 90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12
Pneumatic Braking system WABCO RE 6 relay valve; Spring brake chamber(TKL brand);
2 pieces of 45L air tanks
Rim 9.00-22.5/8.00-20/8.5-20
Tire 12R22.5, 315/80R22.5, 11.00R20, 12.00R20
ABS Optional
Painting FirsT coat of anticorrosive prime, Second coats of final paints
Accessories One standard tool box
Shipping Terms By Bulk Cargo Carrier, RORO or 40HQ Container
Productio Time Usually 15-20 days but according to the order Qty

Our service:

Pre-sale: We provide FREE consolation service, and provide an obligation free quote.

After-sale: 100% guarantee in after service. No damage to human factors, one year warranty, life-long maintenance.
Our factory to co-oriented, equipped with professional service personnel to after-sales product tracking service, free comprehensive consulting services.


1. Are you a manufacturer ?

Yes, welcome to visit our factory at anytime.

2. How is your quality?

We guarantee the quality with our high technology, advanced equipments and rich experiences.

3. What is your MOQ?

One unit trailer or truck.We suggest two trailers one time to save the freight.

4. Can you produce according to my specification?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
