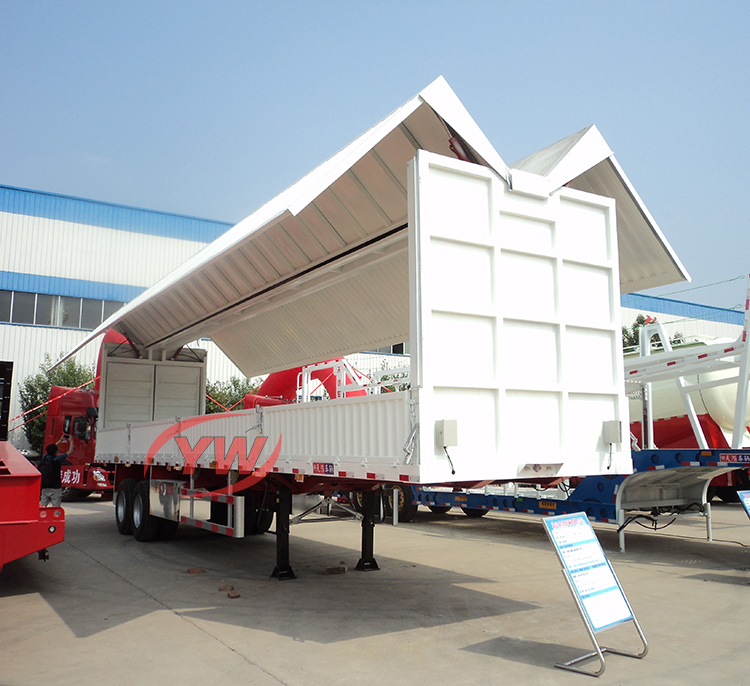

side open door semi trailer for sale
side open door semi trailer for sale
| No. | Part Name | Composition | Specifications |
| 1 | Weight | Tare Weight | 7-10T |
| Loading Capacity | 30-60T | ||
| Axle weighT load | 13T/ 16T/20T | ||
| 2 | Chassis | Main beam | Material is Q345B standard steel Height is 450mm-520mm, the upper plate is 14mm-16mm, The middle plate is 8mm-12mm, the down plate is 16mm-20mm; |
| Side beam | 14# /16# /18# channel steel | ||
| King Pin | 2”or 3.5”Traction Pin | ||
| Dimensions (L*W*H) | 11000~18000×2500~3200×1500+1600mm (size is adjustable as your request) |
||
| Floor | 3mm, 4mm, 6mm diamond steel plate | ||
| Box Type | Van /Curtain side wall trailer, the open door can be chose freely | ||
| 3 | Suspension | Suspension type | Common mechanical or Air suspension |
| Leaf spring | 90mm(Width)×13mm(Thickness)×10(Layer) or 100mm×12mm×12 | ||
| 4 | Running system | Axle | 2 or 3 or 4 axles, FUWA, BPW or other optional brand |
| Wheel Rim | 8.5-20, 9.0-20, 8.25-22.5, 9.0-22.5 | ||
| Wheelbase | 7180/6680/6260+1310+1310mm | ||
| Tire | Specification: 11.00R20, 12.00R22.5 Number of Tire:8 or 12 pieces |
||
| 5 | Brake system | Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber, with big air tanks |
| Brake Valve | KTL Brand/WEBCO | ||
| Brake system | Dual Line Brake system, ABS is optional | ||
| 6 | Other | Tool box | 1 set of standard tool box |
| Light | LED light | ||
| Painting | Complete Chassis sand blasting to clean rust First coat of anticorrosive prime, twice coats of final paint. | ||
| Spare Tire Carriers | 2/4 pieces | ||
| Twist lock | 4 / 8/12 pcs, Lifting type or Twist Screw type | ||
| Landing gear | 28T Heavy duty landing gear (Brand Optional) | ||
| Electronic system | 24v, 7core socket |
Our Services
Pre-sale: We provide FREE consolation service, and provide an obligation free quote.
After-sale: 100% guarantee in after service. No damage to human factors, one year warranty, life-long maintenance.
Our factory to co-oriented, equipped with professional service personnel to after-sales product tracking service, free comprehensive consulting services.
FAQ
1. Are you a manufacturer ?
Yes, welcome to visit our factory at anytime.
2. How is your quality?
We guarantee the quality with our high technology, advanced equipments and rich experiences.
3. What is your MOQ?
One unit trailer or truck.We suggest two trailers one time to save the freight.
4. Can you produce according to my specification?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
