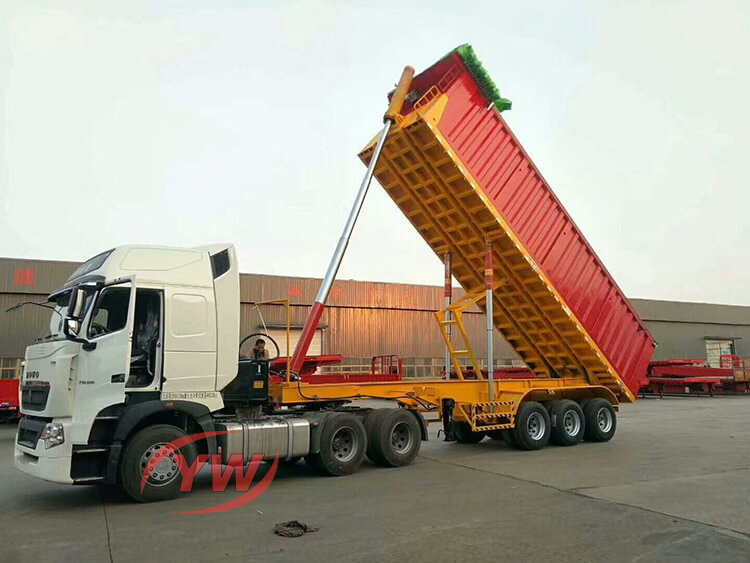

10 meter 3 axles 40 cubic meter tipper trailer
10 meter 3 axles 40 cubic meter tipper trailer
| Overall Dimension(L*W*H) | 7500*2500*(3500~3900mm) size is changed as request |
| Tare WeighT (KG) | 8-14T |
| Loading WeighT (Ton) | 40-100T |
| Axle : | 2 or 3 axles, 13T/16T per axle |
| Suspension system | Common Mechanical Suspension or Air Suspension |
| Leaf Spring | 90mm(Width)×13mm(Thickness)×10(Layer) or 100mm×12mm×12 |
| Main beam | Height:500mm, upper plate is 16mm, middle is 10~12mm(reinforced plate), down plate is 18mm, material is Q345B steel |
| Side wall thickness(mm) | 4-8mm Q235 steel |
| Bottom plate thickness(mm) | 4-8mm Q235 steel |
| Hydraulic jack | Factory standard equipped |
| Tire Type | 11.00R20, 12.00R22.5 Brand can be Optional |
| Tire Quantity | 8 or 12 pcs |
| Steel Rim | 8.00-20, 9.0-20, 8.25-22.5, 9.00-22.5 |
| Traction Pin | 2" 50mm or 3.5" 90mm, Brand can be optional |
| Spare Wheel Bracket | 2 pieces |
| Tool box | 1 Standard tool box |
| Landing gear | 28T Manual operating, Heavy duty landing gear |
| Brake system | Dual Line braking system, ABS is optional |
| Brake air chamber | Six big chamber |
| Electrical system | 1.Voltage: 24v 2.Receptacle: 7 ways (7 wire harness) |
| Light | Tail lamp, Brake lighT & reflector, side lamp etc. |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint Color can be chose by client |
| Shipping Terms | By Bulk Cargo or roro |
Our Services
Pre-sale: We provide FREE consolation service, and provide an obligation free quote.
After-sale: 100% guarantee in after service. No damage to human factors, one year warranty, life-long maintenance.
Our factory to co-oriented, equipped with professional service personnel to after-sales product tracking service, free comprehensive consulting services.
FAQ
1. Are you a manufacturer ?
Yes, welcome to visit our factory at anytime.
2. How is your quality?
We guarantee the quality with our high technology, advanced equipments and rich experiences.
3. What is your MOQ?
One unit trailer or truck.We suggest two trailers one time to save the freight.
4. Can you produce according to my specification?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
