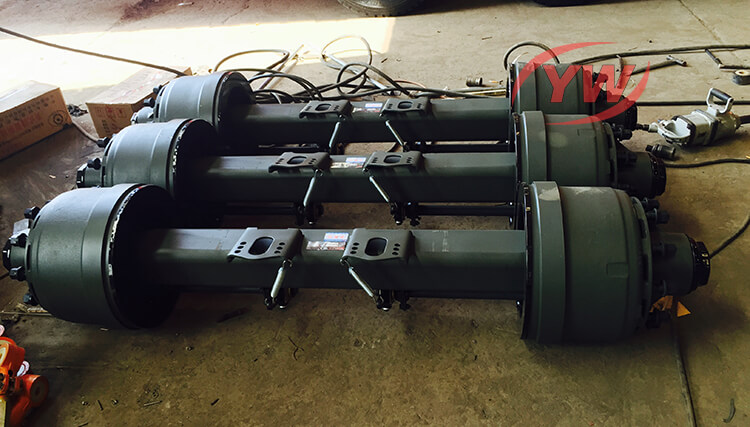

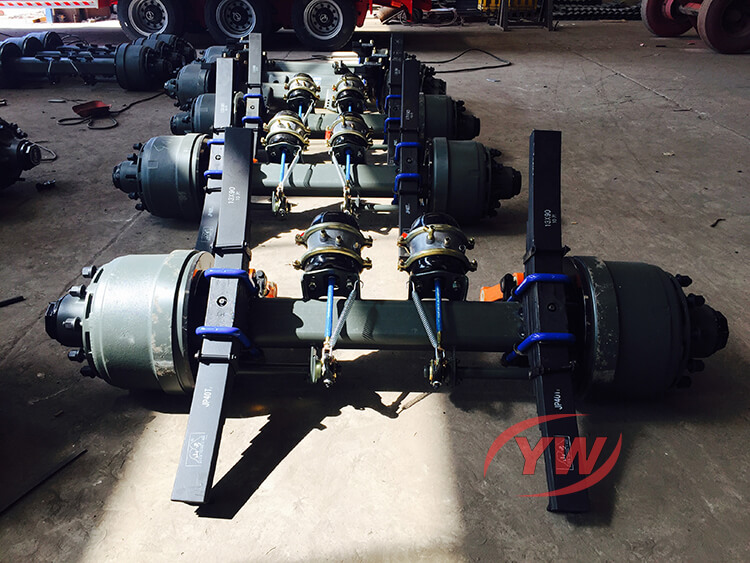

10 Bolt Wheel Hub Truck Semi Trailer Rear Axle
10 Bolt Wheel Hub Truck Semi Trailer Rear Axle ( Outboard and inboard )
American type axles(outboard axles)
| capacity | Axle Tube | Brake Size | Total Length L1 |
Track Length L2 |
Center Distance Of Brake Chamber |
P.C.D | H | Bearing |
| ton | mm | mm | mm | mm | mm | mm | mm | |
| 13T | Square | Φ420×180 | 2180 | 1840 | 390 | 335 | 281 | HM518445/10 |
| 14T | Square | Φ420×180 | 2180 | 1840 | 388 | 335 | 281 | HM518445/10 |
| 14T | Square | Φ420×125 | 2180 | 1840 | 388 | 285.75 | 221 | 7519E/7815E |
| 16T | Square | Φ420×220 | 2195 | 1850 | 388 | 335 | 281 | HM220110/49 |
| 20T | Square | Φ420×220 | 2195 | 1850 | 430 | 335 | 281 | 7522E |
| Note: 1.Optional track length available. 2.Optional ABS and automatic adjuster available. | ||||||||
Main Features & Advantages:
1). Special heat-treated, low-alloy steel axle beam, offers more stability, greater capacity and lighter weight.
2). Forged camshafts with hardened wear surface for the axle.
3). Solid inserted spindle and bearing journals laser heat treated, provide superior fatigue capability.
4). High performance premium non-asbestos brake linings, extend service life.
5). Easy for ABS installation.
