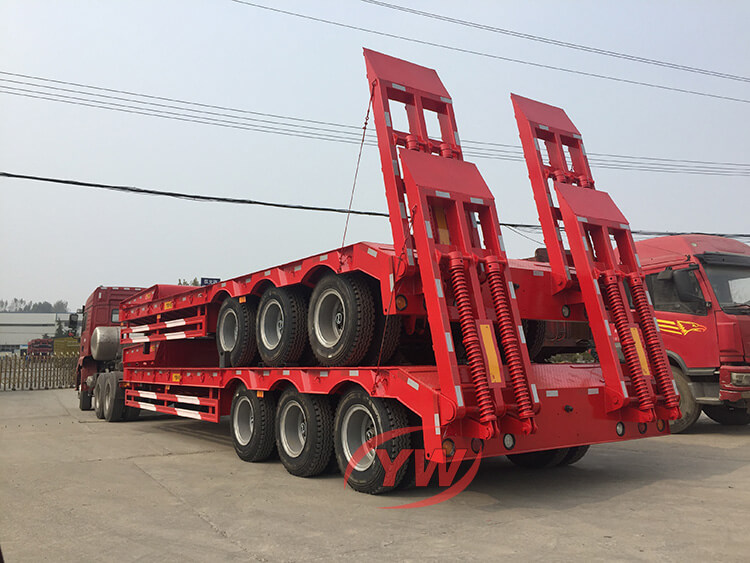

60tons gooseneck low bed semi trailer
Hot sale tri- axle 12 wheels 60tons gooseneck low loader lowboy trailer
| No. | Name | Composition | Specifications |
| 1 | Weight | Tare Weight | 7T-13T |
| Loading Capacity | 30-90T | ||
| Axle weighT load | 13T/ 16T/ 20T | ||
| 2 | Chassis | Main beam | Material is Q345B Steel, Height: 450mm-520mm, upper plate is 14mm-25mm, middle plate is 8mm-12mm, down plate is 16mm-25mm; |
| Side beam | 16mm or 25mm steel channel (Material: Q235steel ). | ||
| King Pin | 2”or 3.5”Traction Pin | ||
| Dimensions (L*W*H) | 12500 - 18000x2500 - 3000x1550, 1650mm (adjustable as request) | ||
| Floor | 3mm/ 4mm diamond steel plate | ||
| Ladder | Manual or Hydraulic type | ||
| Gooseneck | optional | ||
| 3 | Suspension | Suspension type | Mechanical or Air suspension |
| Leaf Spring | 90(W)mm × 13(Thickness)mm × 10 Layers or 100mm × 12mm × 12 layers | ||
| 4 | Running system | Axle | 2 or 3 axles, FUWA, BPW or other optional brand |
| Wheel Rim | 9.00-22.5, | ||
| Wheelbase | 8180+1310+1310 (mm) | ||
| Tire | Specification: 12.00R22.5 Vacuum Tire Number of Tire:8 or12 pieces |
||
| 5 | Brake system | Brake Chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); Two pieces of 45L air tanks |
| Brake system | Dual Line Brake system, ABS is optional | ||
| 6 | Other | Tool box | 1 set of standard tool box Brand |
| Light | LED light Tail lamp with turn signal, Brake lighT & reflector, side lamp etc |
||
| Painting | Sand blasting to clean rust completely FirsT coat of anticorrosive prime, twice coats of final paint. |
||
| Spare Tire Carriers | 1 or 2 pieces | ||
| Twist lock | 4 / 8/12 pcs | ||
| Landing gear | 28T Heavy duty landing gear | ||
| Electronic system | 24v, 7core socket |
FAQ
1. Are you a manufacturer ?
Yes, welcome to visit our factory at anytime.
2. How is your quality?
We guarantee the quality with our high technology, advanced equipments and rich experiences.
3. What is your MOQ?
One unit trailer or truck.We suggest two trailers one time to save the freight.
4. Can you produce according to my specification?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
