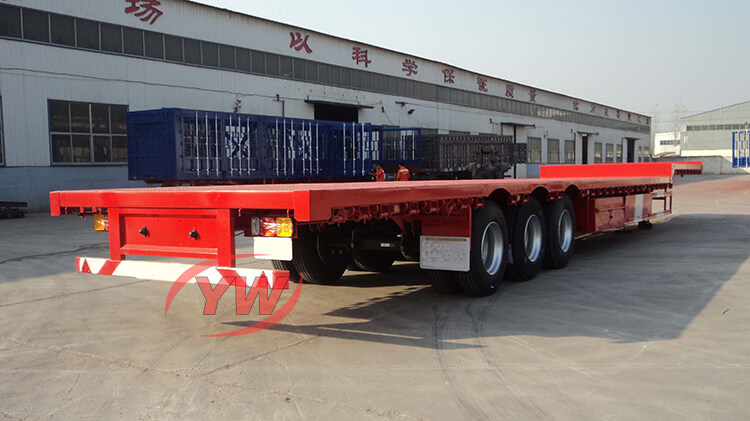

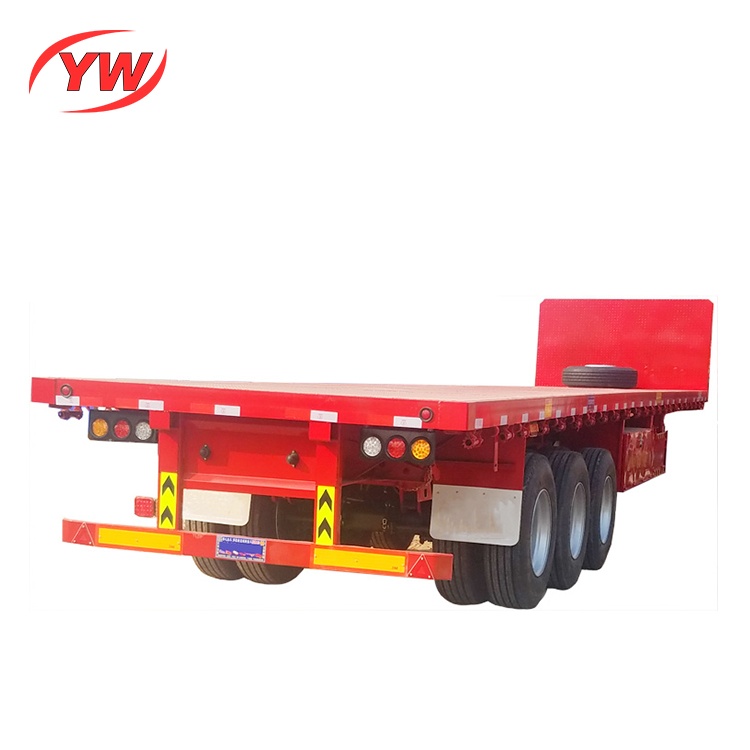

40ft Flatbed Container Skeleton Semi Trailer
Container Semi Trailer
Specifications
| Tare Weight | About 6.5T-8T |
| Dimension | 12500mm*2500mm*1550mm (size is adjustable as request) |
| Loading Capacity (T) | 30-60T |
| Axle | 2/3/4 axles, 13 T/16T, BPW / FUWA Brand or other optional etc |
| Rim | 9.00-22.5, 8.00-20,8.5-20,8.25-22.5 |
| Tire | 11.00R20, 12.00R20, 12.00R25, 315/80R22.5 TRIANGLE,DOUBLE COIN, LINGLONG, Brand optional Tire number: 8/12 pcs |
| Suspension | Mechanical Suspension or Air Suspension (FUWA or BPW or other Brand optional) |
| Spring leaf | 90(W)mm*13(Thick)mm*10 Layer or 100mm*12mm*12 |
| King pin | 2.0 or 3.5 inch JOST brand or other optional |
| Support leg | 28T Heavy duty landing gear, Manual operating, FUWA/BPW/JOST or other brand optional |
| Main beam | Material is Q345B steel Height is 500mm, the upper plate is 14mm-16mm, The middle plate is 8mm-12mm, the down plate is 16mm-20mm; |
| Side beam | Q235 steel, 16# /18# channel steel |
| Brake System | Dual Line Brake system with big chamber, WABCO Valve |
| Twist Locks | 4/8 /12 pieces |
| ABS | Optional |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | 1 unit |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Why us?
- Since 2000, With over 17yrs experience
- Advanced equipments and rigorous quality control system
- Reliability, Safety and Economic Transport solutions
- Custom Production according to demand
- All products is fully tested before delivery
- Perfect after-sales service
- We accept 100% inspection, welcome to our factory at any time
- Competitive Price
- Fast delivery
Pre-sale: We provide FREE consolation service, and provide an obligation free quote.
After-sale: 100% guarantee in after service. No damage to human factors, one year warranty, life-long maintenance.
Our factory to co-oriented, equipped with professional service personnel to after-sales product tracking service, free comprehensive consulting services.
FAQ
1. Are you a manufacturer ?
Yes, welcome to visit our factory at anytime.
2. How is your quality?
We guarantee the quality with our high technology, advanced equipments and rich experiences.
3. What is your MOQ?
One unit trailer or truck.We suggest two trailers one time to save the freight.
4. Can you produce according to my specification?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
